借款用途与筒介/Purpose and introduction：

NQGF型西林瓶粉针洗烘灌装轧盖标贴纸签互通线 由QCL款型柜式超声拆洗检查波洗瓶机、AQMR隧道施工式暧风循环往复法过滤除菌烤箱、NQFGX款型加工中心螺母粉剂灌装机、NQ-50轧盖机、NQWTB-120标贴纸签飞机机组成，也可电脑单机选用。适于7-25ml品种的西林瓶粉针的产量。能达成喷淋拆洗加压、超声拆洗检查波粗洗、瓶壁上水清扫冲干净器、瓶壁上陆续三次循环往复法水清扫冲干净器、次吹气、次鲜美水清扫冲干净器、陆续三次吹气、瓶壁上吹气、拆洗、打火、干燥过滤除菌去热原、水冷却、灌装、加塞、轧盖、标贴纸签等二十几个道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

作用/characteristic：

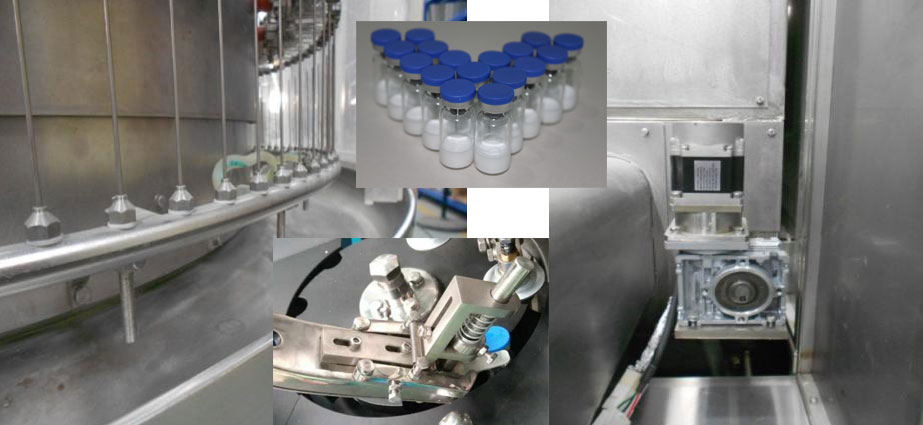

◆洗瓶机主要包括机械设备制造手夹瓶，可用于种规模的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶运用水汽喷针反复追踪添加策略，洁净功能好，避免资源。并具有针架防颤抖设备，增加喷针添加水瓶座的更准度，避免断针的现象突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整一个雾气输送管、喷针是孤立独立，防止出现了交叉重合被污染的，符合国家GMP实验室管理标准请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前装个缓存数据块，有保护好螺丝杆，限制碎瓶角色；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选取总布局进口清关关联带，相连拨瓶块传输西林瓶，操作稳定能信能信；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱采取自动空调循坏预热，环境温度平滑，低能耗；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆恒温干燥箱均有防时不时关电保护性职能。执行安全性高；Mixer oven has suddenly loses power protection function. Run security;◆真空烘箱可配循环法水冷式试验装置，不消耗的资金房屋风速，极大减少房屋的压差大不发展的概率下降治疗好使；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆干燥箱可配压值一键均衡性缓解机系统抑制房間和干燥箱的压值不均衡性会导致的高气温段偏位，灌装线间洗烘间气温升高级一题材的现象；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱还拥有DOP检则插口(包扩压力、流速、颗粒颗粒检则口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘干箱冷却后段可带高清在线过滤除菌性能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带超声洁净蔓延到CIP在线播放洁净体统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆真空烘箱内腔室可进行全位置、多维度超高压水喷洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆预包装机用全国更优秀的设定服务理念，具高度，甚至分瓶最准确，撤换型号件有利；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机适用联络交流伺服三相异步电机三相异步电机控制程序预包装丝杆缩放，装量精密；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆预包装机主要包括装量的調整马上在触屏屏上满足；Mixer packer adopts the load adjustment directly on a touch screen;◆预包装机必选配百级反复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆分开包装机无瓶暂停分开包装，无瓶不放塞实用功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总把握、变频柜器、提示屏屏把握技巧，使用安全可以信赖。提示屏屏可提示各电脑单机的使用模式，各把握点的通水压力、标准气压、风压差、温等提示，各旋钮模式和设备错误代码率提示，设备错误代码率自我价值检查和设备错误代码率阐述及清除策略。使另一生產环节可达自行化把握，联线包括测控均衡性控制系统，保护生產均衡性可以信赖。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会根据大家的要，还可供选择装配：According to the needs of customers, but also available for selection:◆西门子系统、斯耐德、三凌、台达等产品品牌掌握系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、温度及超声检查波力度、尘埃什么意思粒子束、空气流速迅雷在线检测工具、警报、记下、网页打印系统化；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌室隔绝器程序。ORABS, CRABS, aseptic isolator system.

的技术指标设置：/technical parameters

款式 model

生产的业务能力production capacity

洗瓶合格品率Washing bottle percent of pass

洗瓶破损掉镀率Washing bottle breakage

消毒室内温度sterilizing temperature

分开装袋差值The repackaging of error

加塞良好率率Gasser percent of pass

气流层流超纯净度Laminar air cleanliness

真空箱抽速Vacuum pumping speed

电容器量 capacitance

电压power supply

总用电量Total transmission energy

内部结构规格尺寸boundary dimension

7-25ML执行标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
