适用范围与简绍:Purpose and introduction

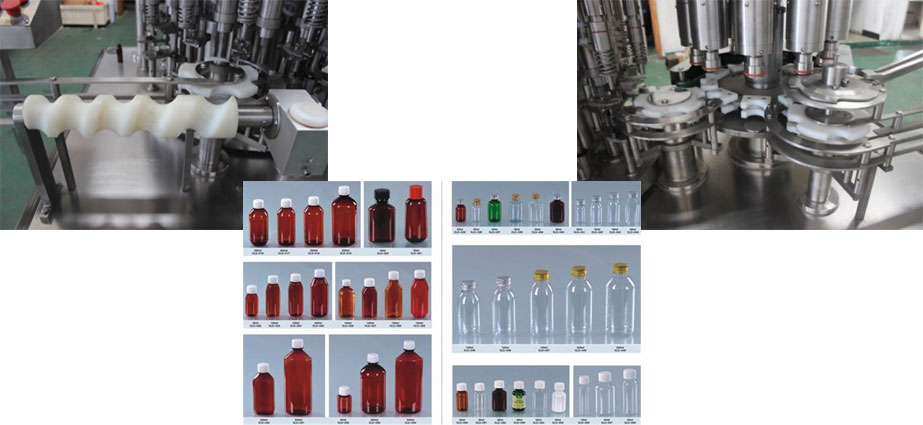

该机械可应用于对30-500ML编夹层瓶子、塑胶片材质瓶的装灌机械密封。运用经济往来结交式发动机活塞做出装灌机械,电磁炉自由振荡送盖,可能轧盖(合金材料式)或旋盖(塑胶片材质盖)密封,可能和左右侧的生產道工序机械连接起来结构生產线,另外可能的选择百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.优点和缺点:characteristic
装量准确无误,杜尽漏滴。缺瓶不装灌。 变频式控速。 相互表现计数器营养价值。 机床均按GMP规定要求设计方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.科技数据/technical parameters:
型号 model | NQGX30-500 |
用于要求Cutting dimension | 30-500ml |
出厂力量Production capacity | 80-200瓶/分(罐/小时)80-200 bottles/min (cans/min) |
灌装设备精密度 Filling accuracy | ≤±1% |
主机电源 Power | 380V/50Hz |
旋(轧)盖率Spin (rolling) cover rate | ≥99% |
功率power | 3.0 kw |
机械性毛重 Machine weight | 1500 kg |
外形尺寸 boundary dimension | 3000*1100*1700mm |
